Latest ESP32DIV V2 Firmware Version V1.7.0 Upgrade Kit with Enhanced Antenna, NRF24 CC1101 IoT Development,Wifi,Bluetooth,Signal Controller,SubGHz

What's New in v1.7.0

🚀 Hardware support

• ESP32-DIV V1 support is back
• ESP32-DIV V2 support continues
• CYD (ESP32-2432S028) is now supported

🛠 What's new

• Touch navigation — full touch control added for CYD and compatible displays

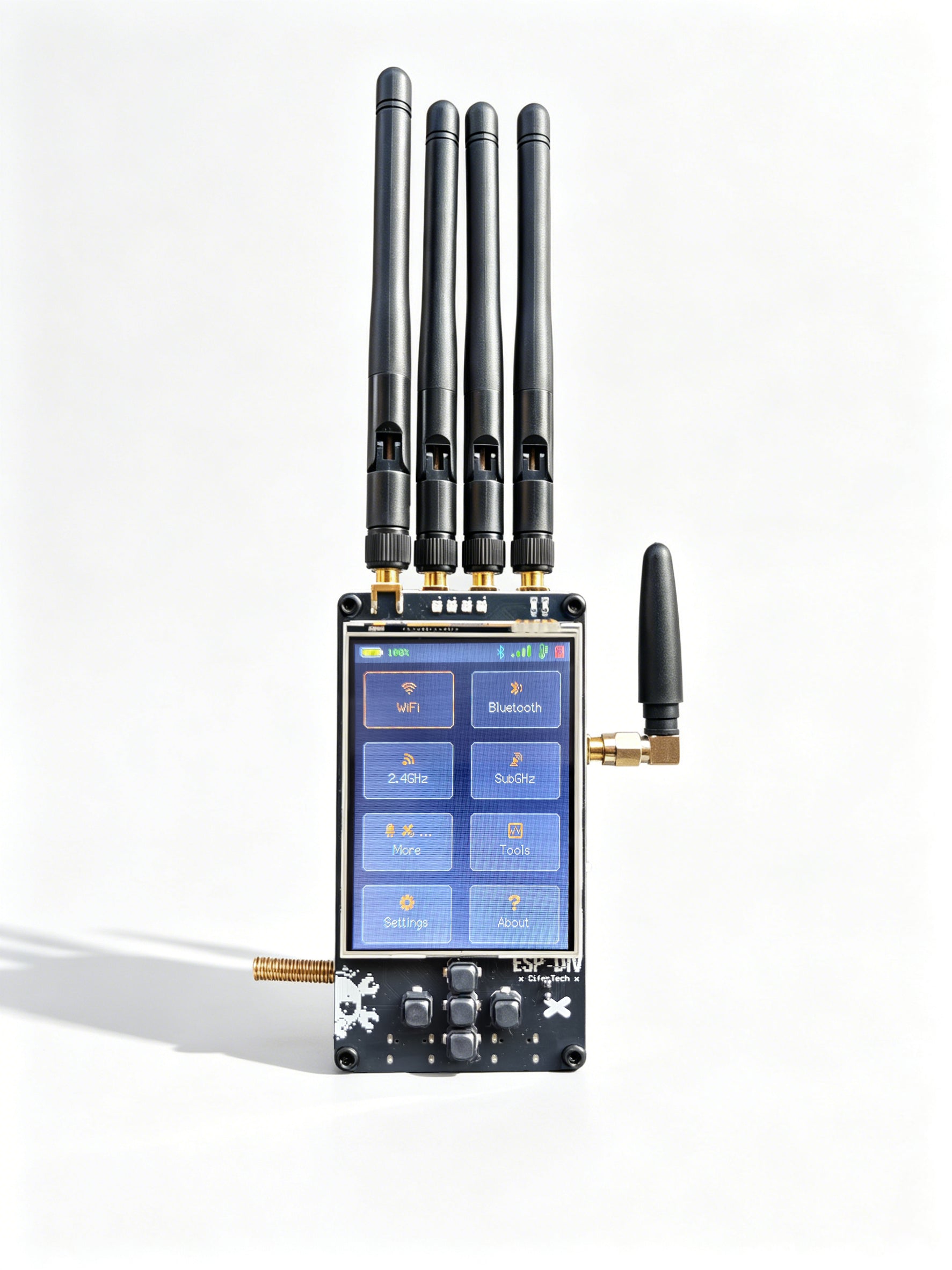

• UI overhaul — visual and layout improvements applied across every feature
• Theme settings — new option in Settings to change the main accent color (default: orange)
• BoardConfig.h — single header file for selecting your target board at compile time
• PCF8574 I2C — added auto-detection for PCF8574 I2C address configuration
• Auto display rotation — TFT and touch rotation set automatically per board
• Keyboard fix — caps, special characters, and a consistent keyboard across all features
• Default touch calibration for each board — factory defaults per board; saved per profile in settings
• Bug fixes — most known bugs for each feature have been addressed

Includes:

Built‑in universal IR device profiles
Category / brand browser
Favorites for quick access
SD card support for loading custom profile files
Clean remote‑style control interface
Updated IR UX with improved navigation and responsiveness
📱 BLE Spoofer: Now Supports Android Devices
See Supported Devices
New spoofable devices:

Samsung Galaxy Watch 4
Samsung Galaxy Watch 5
Samsung Galaxy Watch 6
Google Smart Controller
Existing iOS/Apple spoofing support remains fully available.

🛠 New Tools
Expand
SD File Manager
Browse SD card folders
View directory structure and stored files
Useful for managing IR profiles or custom data
WiFi Probe Request Flood
A new WiFi tool modeled after the WiFi Deauther flow:

Scan → Select Target → Start / Stop

Transmits probe request frames for the chosen AP
Clean, simple interface matching the rest of the WiFi tools
🎨 UI & UX Improvements
Expand
IR Recording Screen
Added REC / Captured status pill
Rounded, modern info card
Removed clutter (title, icon, pin labels)
Cleaner, more focused layout
Scanner UI Updates
Bigger, easier‑to‑tap list buttons
WiFi & BLE scanners now visually aligned with WiFi Deauther UI
Improved readability and navigation
Color Corrections
Adjusted UI colors for balance and consistency
Fixed mismatched tones across menus

Features

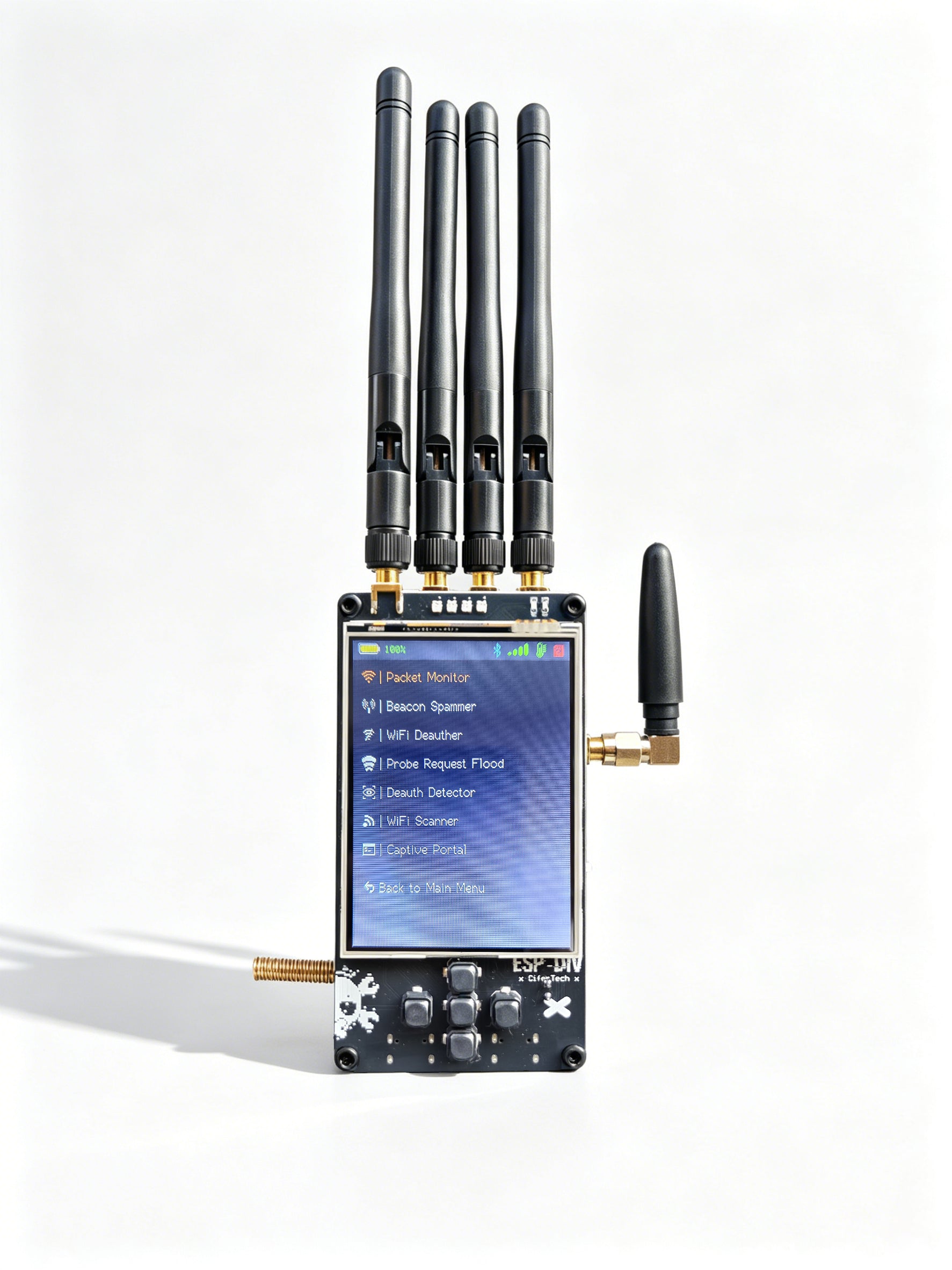

📡 Wi-Fi Tools
Packet Monitor – Real-time waterfall graph of all 14 Wi-Fi channels

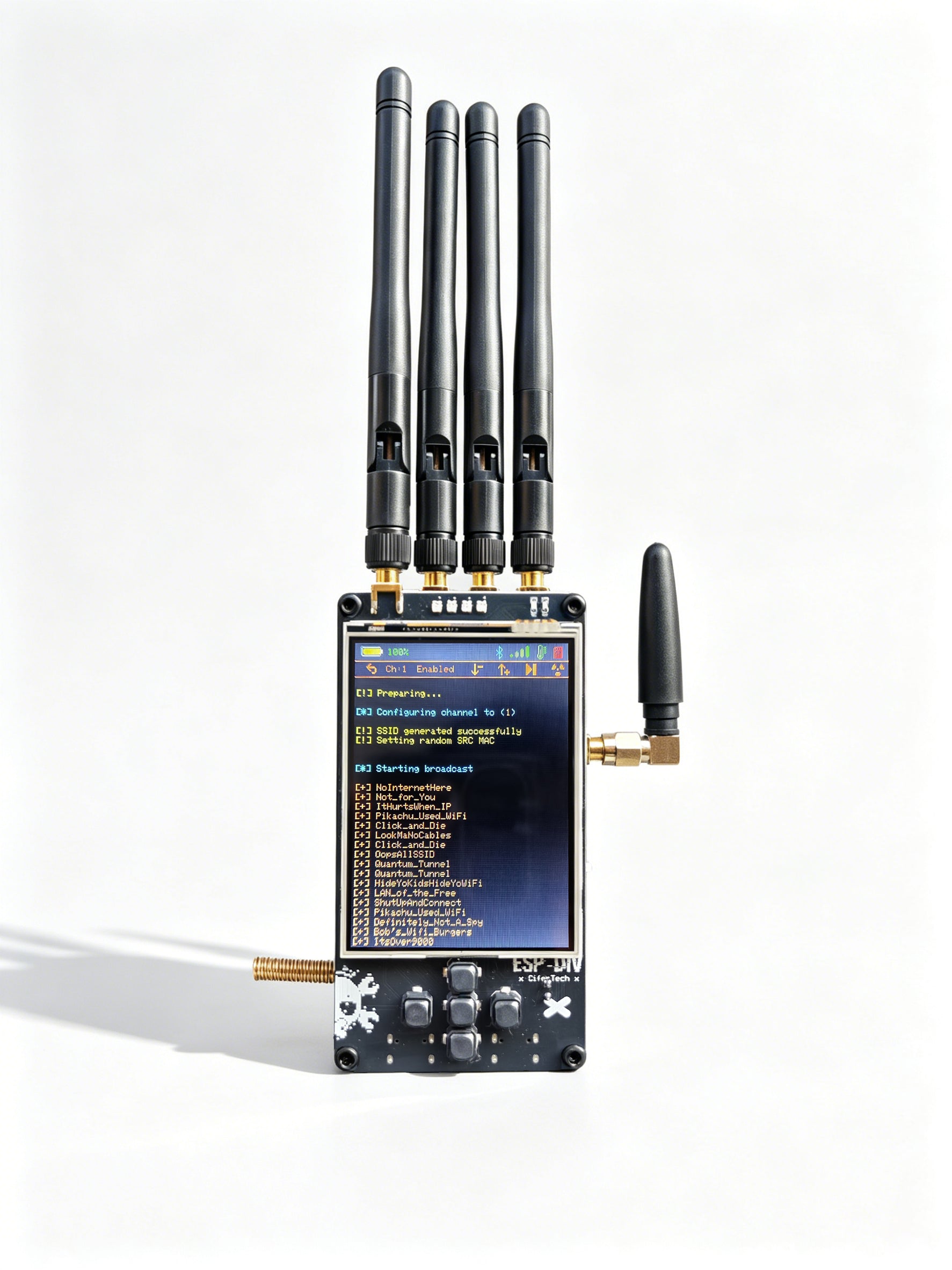

Beacon Spammer – Broadcast fake SSIDs (custom or random)
Deauth Detector – Monitor for Wi-Fi deauthentication attacks
Wi-Fi Scanner – List nearby Wi-Fi networks with extended details
Wi-Fi Deauthentication Attack - Send deauthentication frames to disrupt client connections
Captive Portal - ESP32 runs as AP + DNS + web server. Clone networks, force sign-in pages, all before HTTPS/authentication
🔵 Bluetooth Tools
BLE Jammer – Disrupt BLE and classic Bluetooth channels
BLE Spoofer – Broadcast fake BLE advertisements
Sour Apple – Spoof Apple BLE advertisements (e.g., AirDrop)
BLE Scanner – Scan for hidden and visible BLE devices
BLE Sniffer - Scans BLE advertisements, tracking MAC, RSSI, packet count, and last-seen time. Suspicious devices are highlighted
BLE Rubber Ducky - Acts as a BLE keyboard and executes SD card scripts. Keys are released and advertising stops on exit
📶 2.4GHz Tools
2.4GHz Scanner – Spectrum analyzer for 128 channels (Zigbee, custom RF, etc.)
Protokill – Disrupt Zigbee, Wi-Fi, and other 2.4GHz protocols

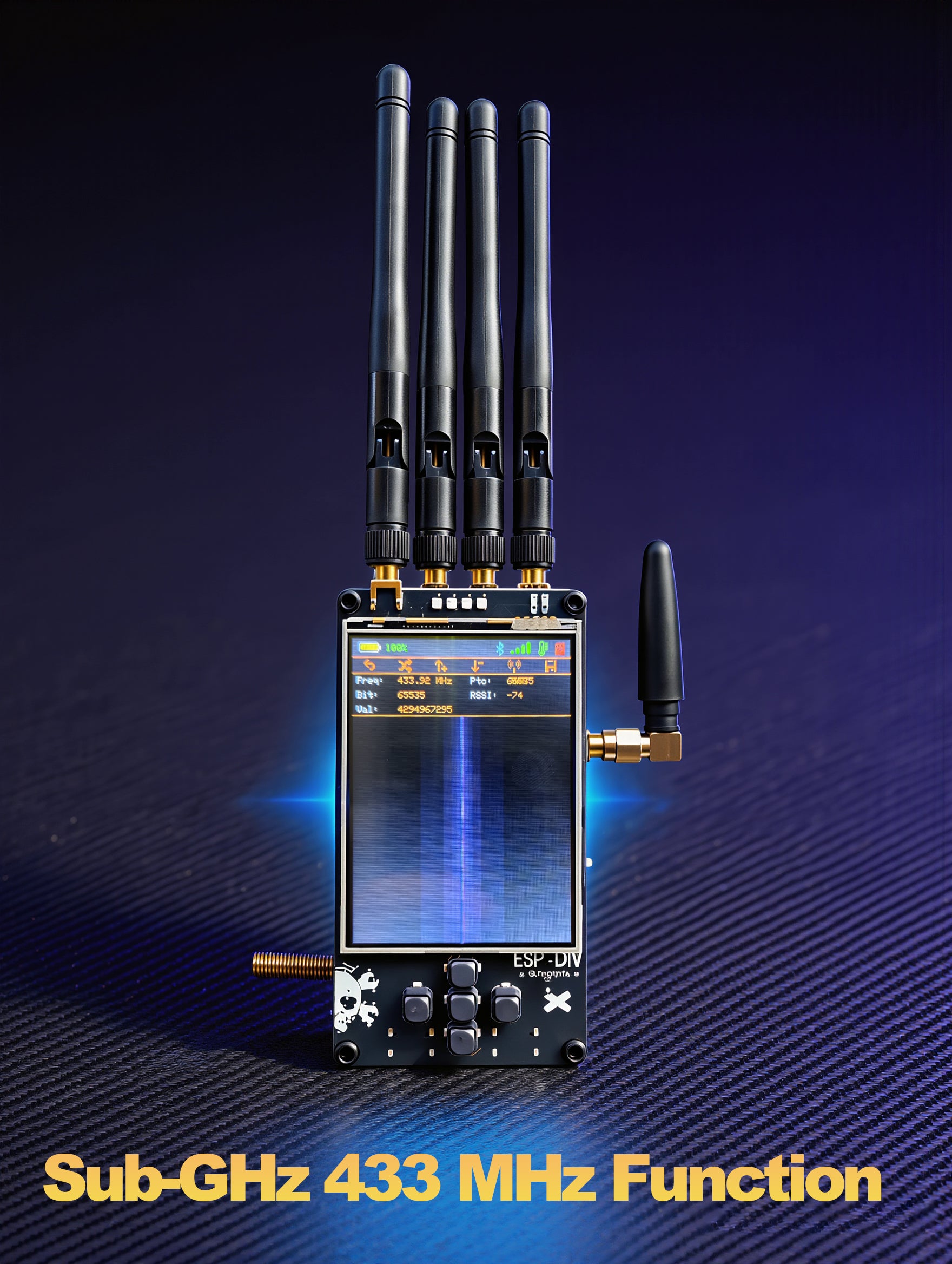

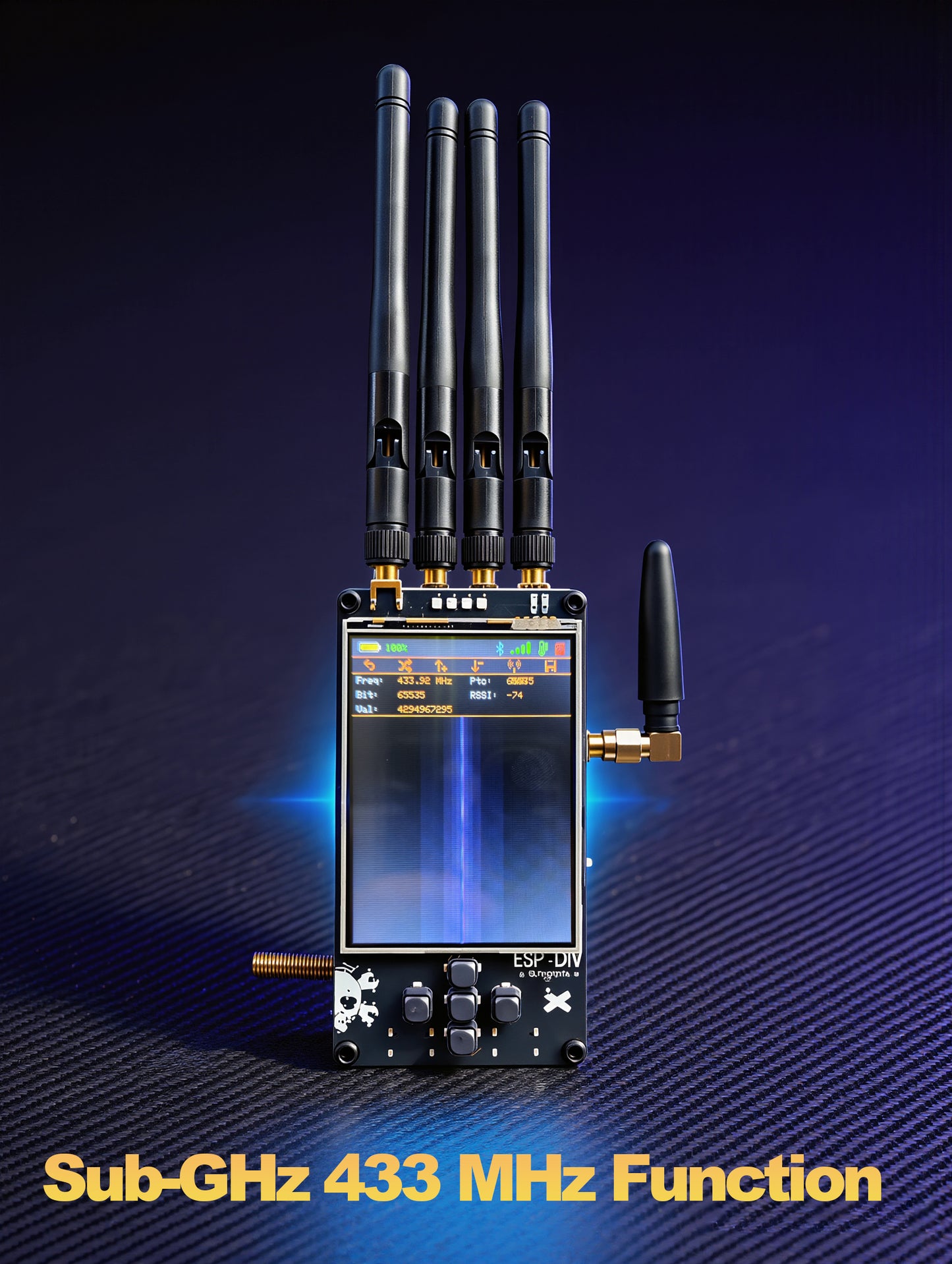

📻 Sub-GHz Tools

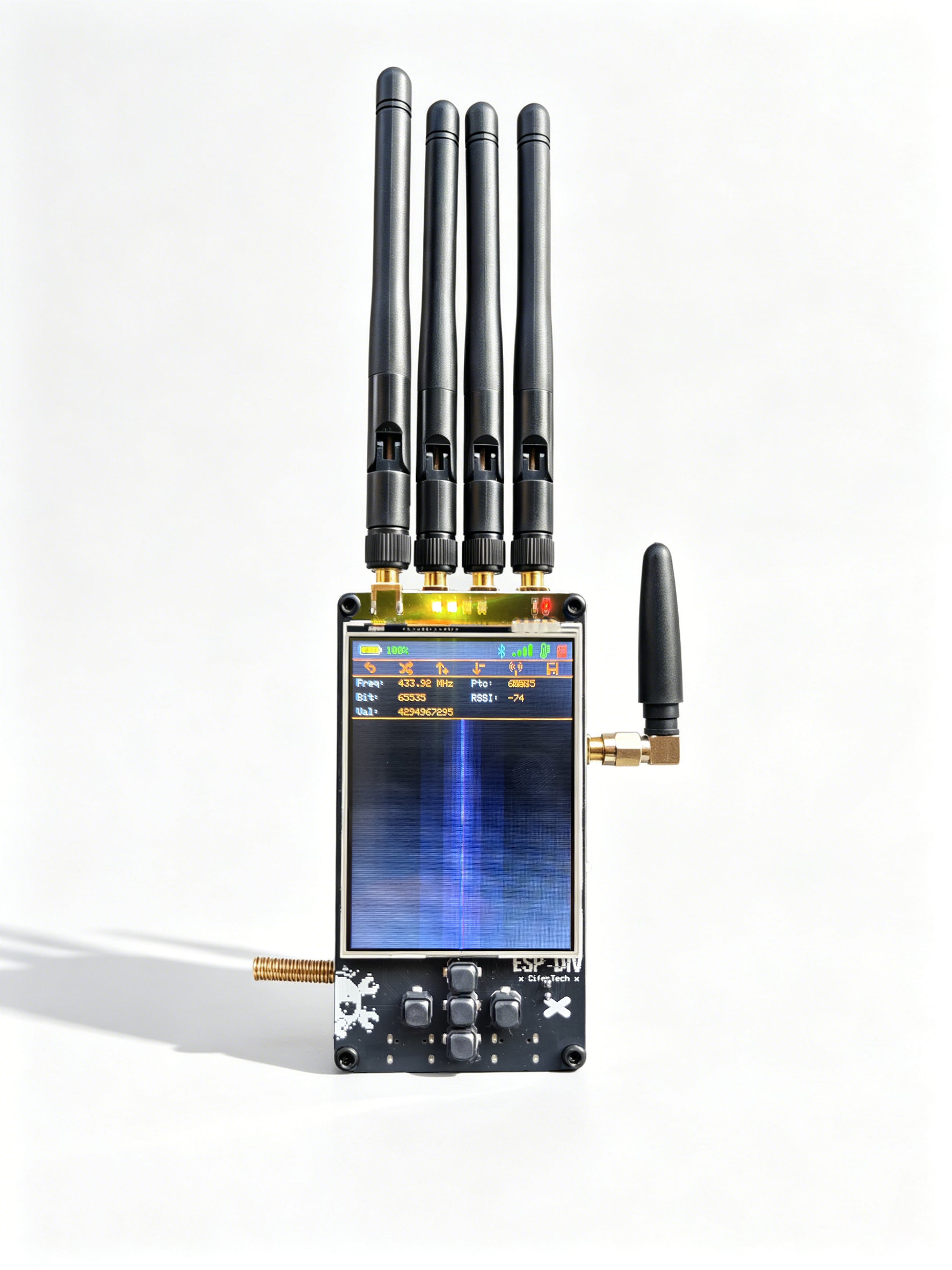

Replay Attack – Capture and replay Sub-GHz commands (e.g., door remotes)
Sub-GHz Jammer – Disrupt Sub-GHz communication across various bands
Saved Profiles – Store and manage captured signal profiles
📺 Infrared (IR) Tools
IR Replay Attack - Capture real IR remote presses, visualize, replay, and save to SD
IR Saved Profiles - Browser for IR captures, preserving signal and carrier frequency for accurate retransmission

🔧 Hardware Overview

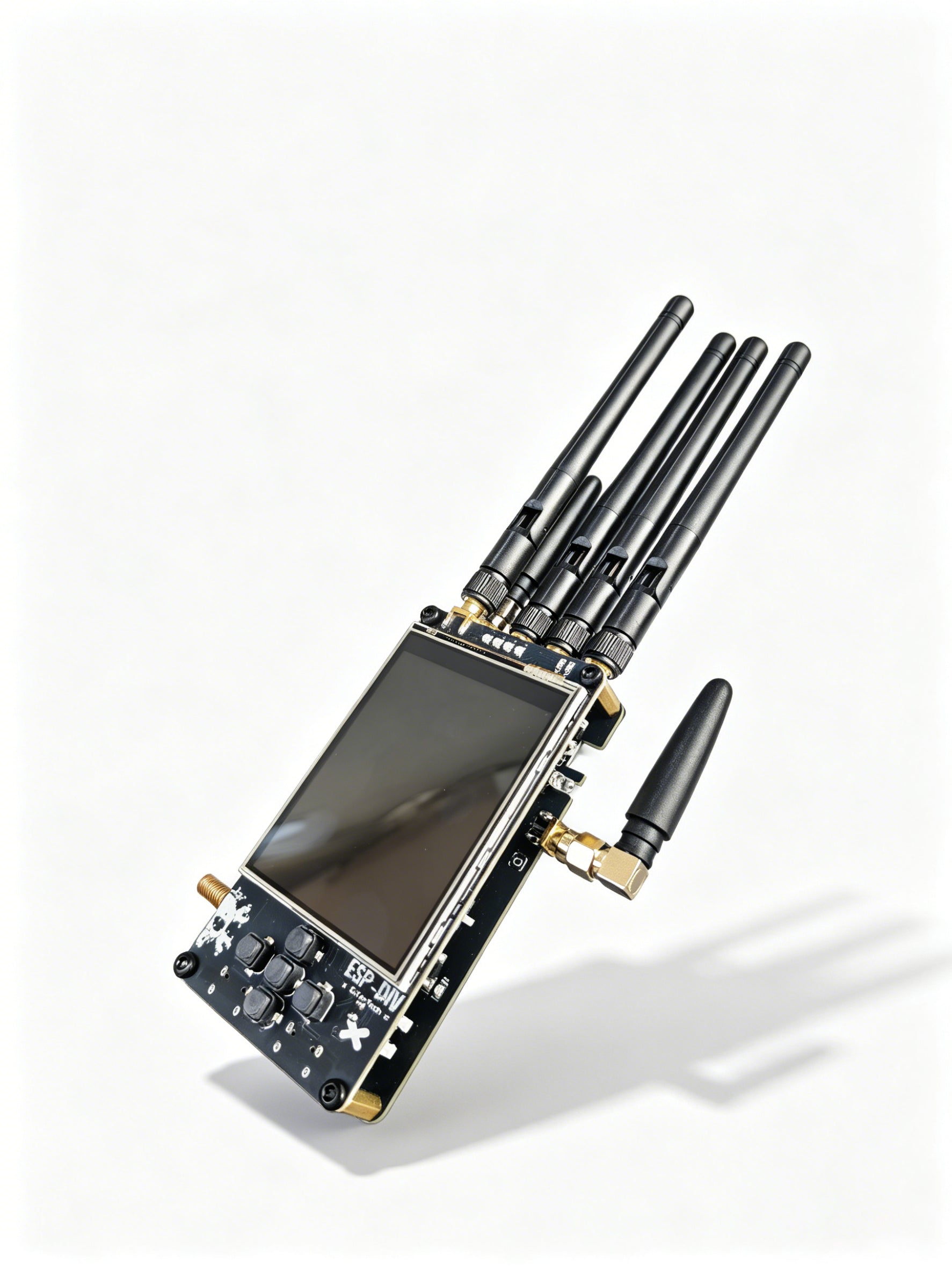

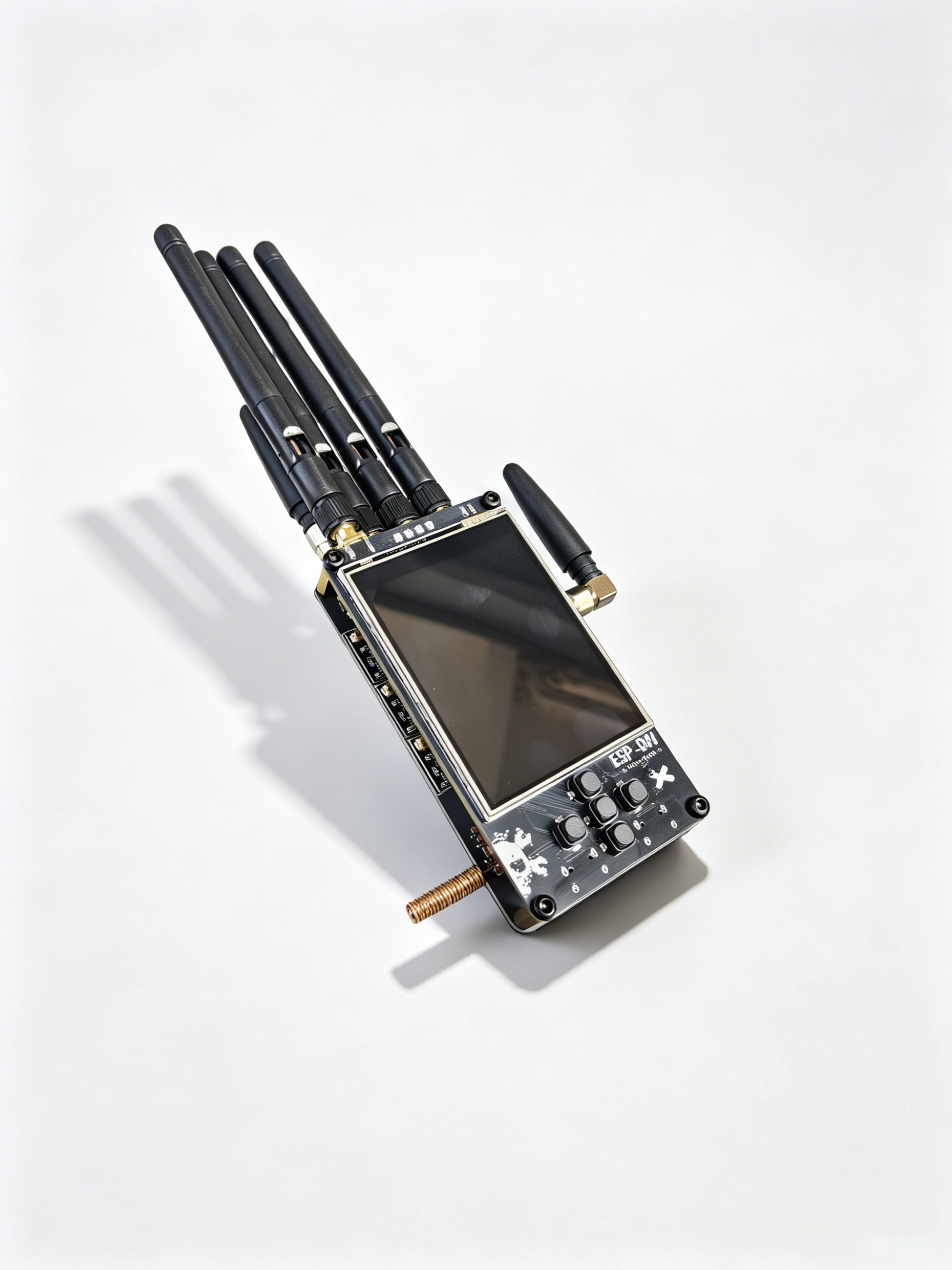

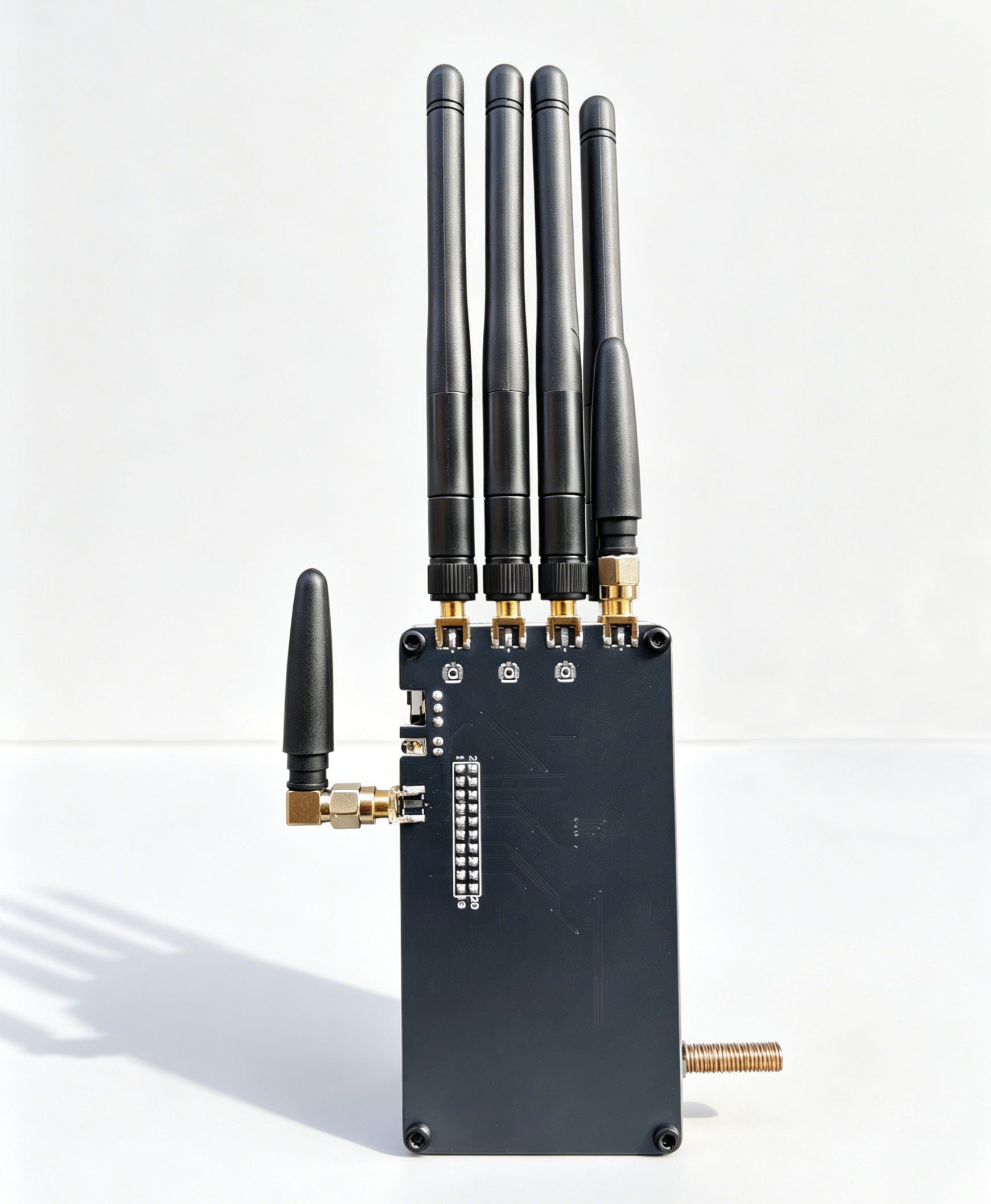

ESP32DIV consists of two boards:
🧠 Main Board
ESP32-S3 – Main microcontroller with Wi-Fi and BLE
ILI9341 TFT Display – 2.8" UI display
LF33 – 3.3V regulator
IP5306 – Lithium battery charging and protection
CP2102 – USB to serial for flashing
PCF8574 – I/O expander for buttons
SD Card Slot – Stores logs and captured signals
Push Buttons – Navigation and interaction
Antenna Connector – External antenna support
WS2812 NeoPixels - Giving better feedback
Buzzer - It shares a GPIO with the battery voltage divider, so using it is optional.
🛡️ Shield
3x NRF24 Modules – 2.4GHz jamming and spoofing
1x CC1101 Module – Sub-GHz jamming and replay

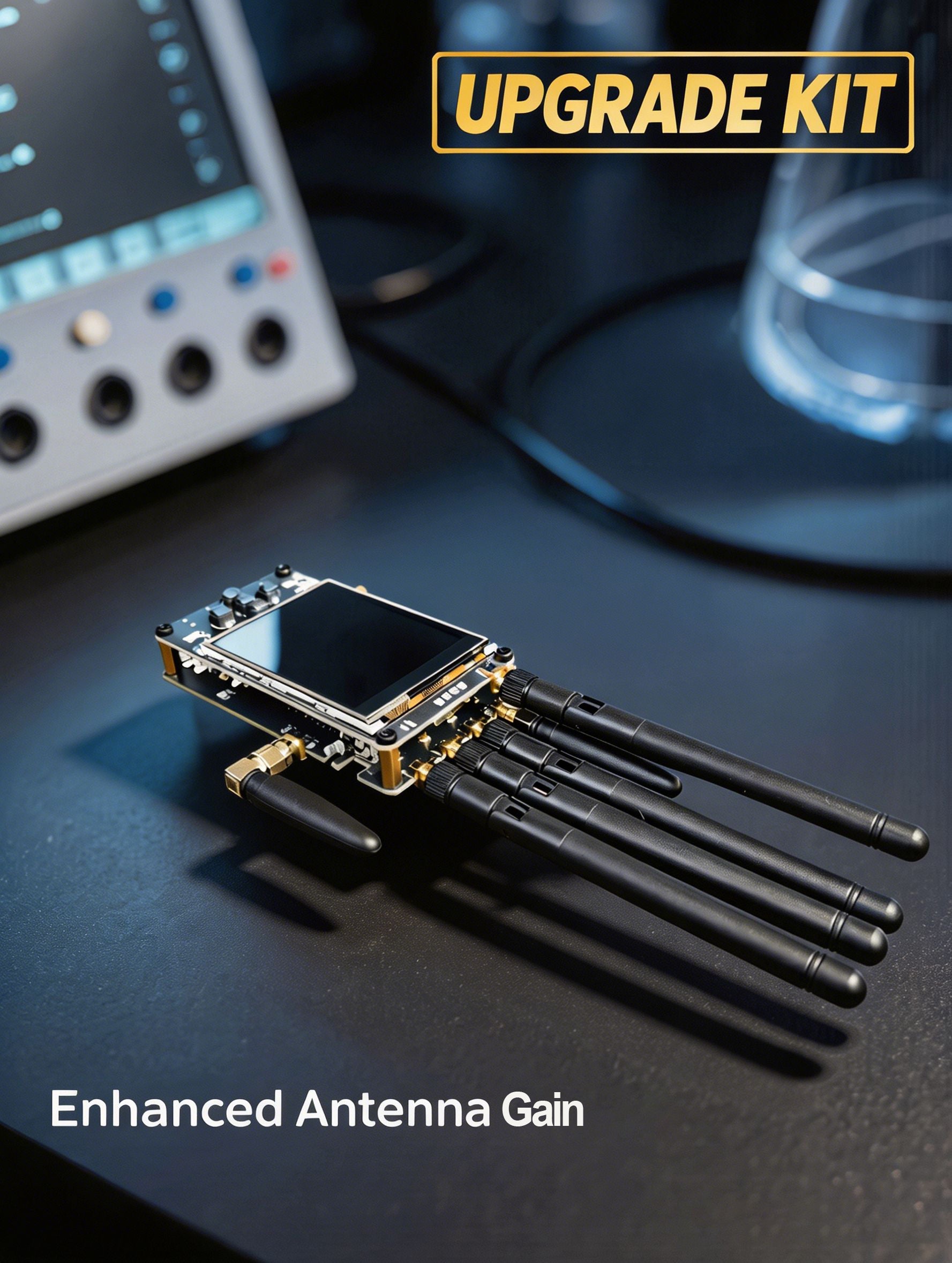

A Set of Upgraded Antennas
Infrared
